ADoST 3X-RDS1 Benchtop Robo is designed to be used with single or two component adhesives and sealants in
|
| Model No. | ADoST 3X-RDS1 |
Specifications
| Model Number | ADoST 3X-RDS1 | ||
| Bed Size | 400mm x 400mm x 160mm | ||
| Operational range | 372mm x 392mm x 112mm | ||
| Outer Dimension | 724mm x 735mm x 800mm | ||
| Drive Mechanism | Belt Drive/lead screw drive | ||
| Maximum Object Height | 160mm | ||
| Power requirement | 230 VAC, 50Hz 10A | ||
| Axes of Movement | 3-axis (X, Y, Z) motion for precise positioning | ||
| Repeatability in each axis | +/- 0.01mm | ||
| Resolution in each axis | 0.001mm | ||
| Net Weight | 30 kg | ||
| Tool Load | Maximum 4Kg | ||
| Application Object Load | Maximum 10Kg | ||
| Maximum Speed (x, y, z) | 800 mm/sec, 800 mm/sec, 100 mm/sec | ||
| Operational method | Teach Pad | ||
| Operating Temperature | 0°C to 40°C. | ||
| Operating Humidity | 10% to 80% RH (non-condensing). | ||
| Data Storage | Robo Memory storage/USB backup | ||
| Display | 10.1-inch HD capacitive touch screen, LCD | ||
Benefits
|
|
|
|
|
|
|
|
Applications

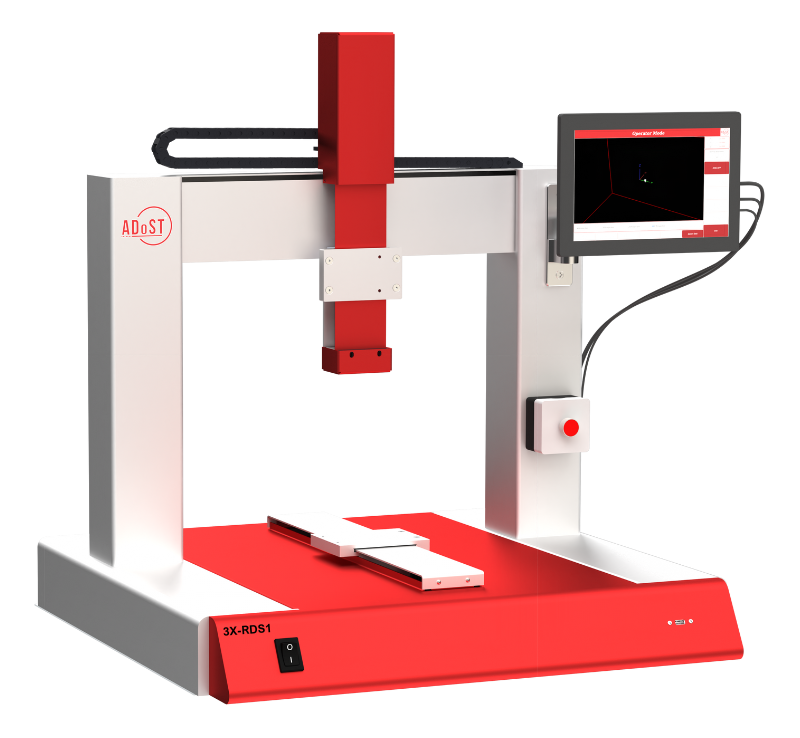

ADoST 3-Axis desktop robotic system for controlled adhesive and sealant dispensing.

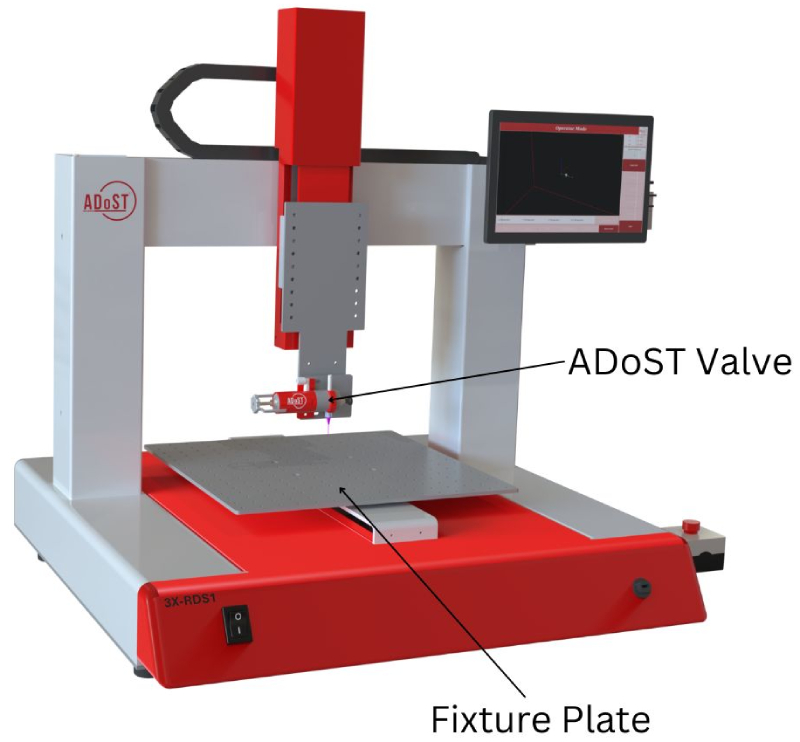

The ADoST 3X-RDS1 Robo is a compact desktop robot built to automate the precise application of adhesives and sealants. Its three-axis motion system (X, Y, Z) enables smooth, programmable movement and accurate dispensing within a controlled working area.
ADoST 3XRDS1 Adhesive Dispensing Robot | Visual Path Programming & Digital Teachpad Control
Programming your robot shouldn’t feel like a black box. The ADoST 3XRDS1 adhesive dispensing robot redefines robot programming with intuitive visual path programming and digital Teachpad control. Designed to remove guesswork, the system provides clear motion visualization and converts command inputs into precise, controlled robot movement through ADoST software technology.
With real-time control, faster setup, and user-friendly operation, the ADoST 3XRDS1 delivers consistent dispensing performance while giving operators complete clarity and confidence.
Precision Adhesive Dispensing on a 1.5mm Surface | ADoST 3X-RDS1
Watch the ADoST 3X-RDS1 achieve precision adhesive dispensing on an ultra-narrow 1.5mm landing surface while maintaining high production speeds. Unlike generic robotic dispensing systems, ADoST’s purpose-built dispensing control architecture eliminates interpolation lag, ensuring accurate bead placement across constantly changing contours and varying part heights.
