Loxeal anaerobic threadlockers lock studs,nuts,screws and other threaded fasteners from loosening caused by vibrations,impact and mechanical or thermal shocks.Loxeal threadlockers also inhibit fretting corrosion and prevent seizure and galling.

grub screw locking liquid threadlocker screw

Low strength-Easy to disassemble Threadlocker

Low strength Loxeal threadlockers are recommended for small size fasteners and screws where levels of vibrations and impact are low. They are also suitable on large nuts and bolts that needs to be serviced frequently.

Medium Strength-Possible to disassemble Threadlocker

Loxeal medium strength threadlockers are recommended on fasteners that undergo low to medium levels of vibrations and impact and require dismantling or servicing for maintenance.

liquid Threadlocker Loxeal Loctite

High Strength-Permanent Locking Threadlocker

Loxeal high strength threadlockers are great for fasteners that need to be locked permanently. A fastener locked with Loxeal high strength product cannot be disassembled by handtools.

Do’s & Don’ts for Loxeal Threadlocker

Do’s Don’ts

Clean the Nut-Bolt using WhiteON Cleaner and WhiteON Wipe to ensure that the surface is free of grease, oil and any foreign particles.

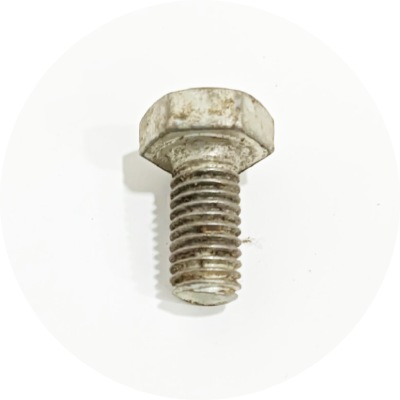

Do not use Loxeal Threadlocker on contaminated fasteners.

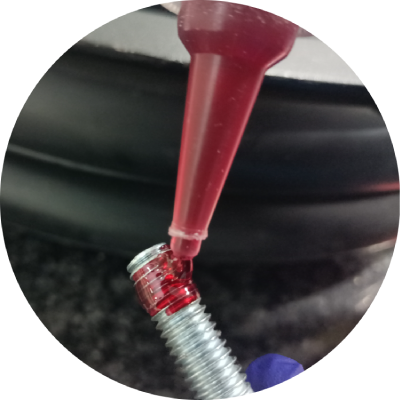

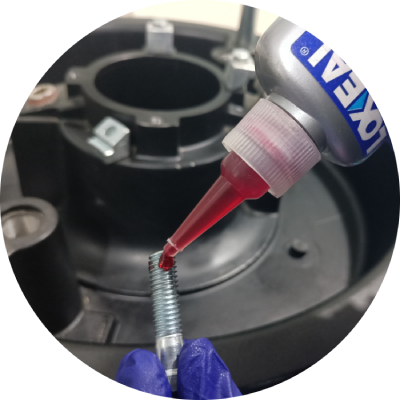

Dispense the suitable drop size of Loxeal on the bolt leaving the leading thread. Refer to the “Threadlocker Volume Gauge” at the bottom to select the right drop size.
Don’t over-apply. Excess Loxeal can drip and create a mess.

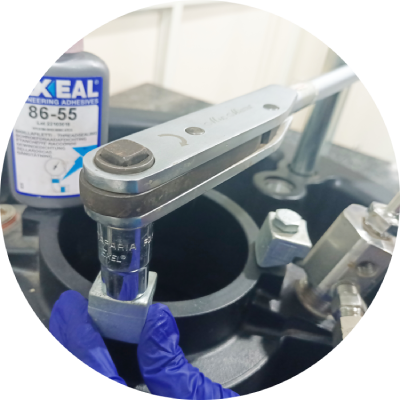

Dos-Tighten the fastener and apply On-Torque

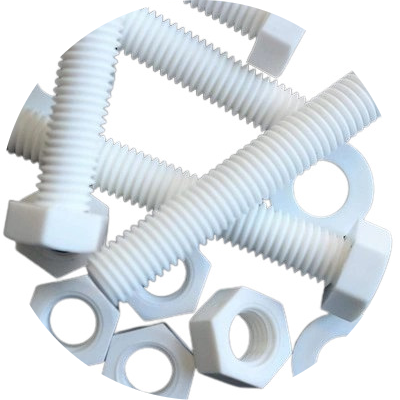

Tighten the fastener to appropriate torque as specified.		 Don't-Apply on plastic fasteners
Do not use Loxeal on plastic screws. It can damage the plastic and not adhere well.

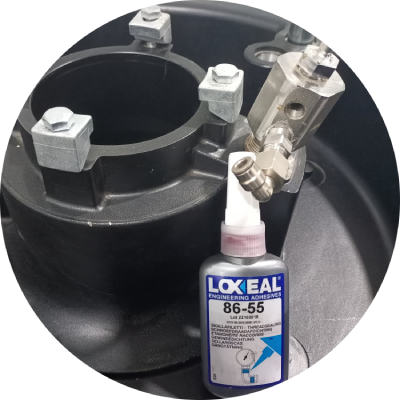

Dos-Allow the Loxeal Threadlocker to achieve handling strength

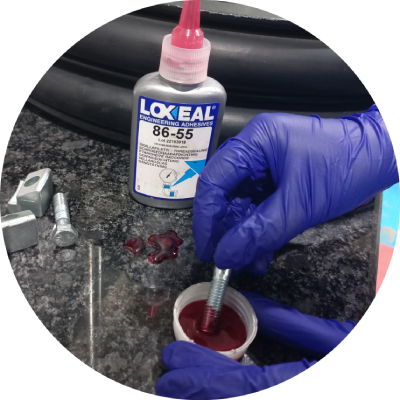

After tightening, allow the Loxeal to reach handling strength before subjecting the assembly to operational stress.		 Don't- Refill Loxeal bottle with used product-photoaidcom-cropped
Don’t transfer the Loxeal Threadlocker into another container.

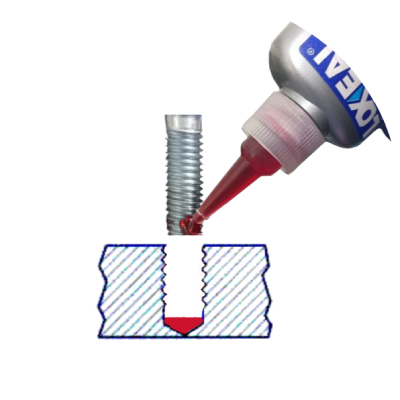

While using on blind holes, apply on male thread as well as put a few drops in the blind hole for appropriate locking effect.		 Don't- Refill Loxeal bottle with used product-photoaidcom-cropped
Don’t store the Loxeal Threadlocker in extreme conditions. Avoid heat, sunlight or freezing temperatures.

Threadlocker Volume Gauge

Bolt Size M3

M6

M8

M10

M12

M16

M20
Drop (ml) 0.02 0.03 0.05 0.08 0.14 0.23 0.33
Drop Size



Bolt Size Drop (ml)

Drop Size
M3
 0.02
M6
 0.03
M8
 0.05
M10
 0.08
M12
 0.14
M16
 0.23
M20
 0.33

Disclaimer: *For reference purpose. If in doubt, verify with Elixir’s Technical Department
