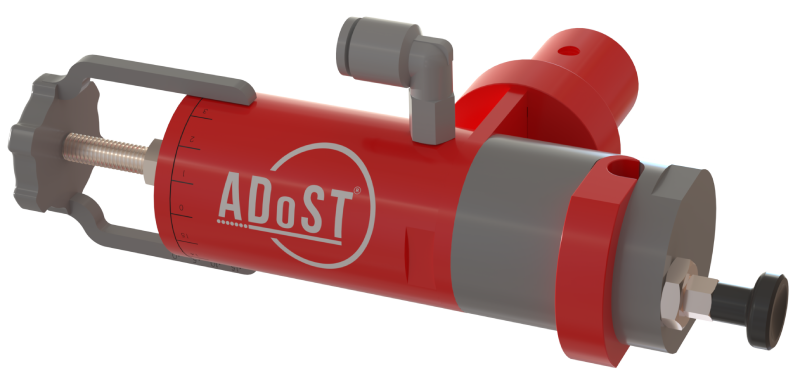

ADoST-Pinch-Valve-1-1
Applications

ADoST Pinch Valve is designed to be used with low to medium viscous products in following chemistries

  1. Cyanoacrylate adhesives
  2. Two-part adhesives
  3. UV Cure adhesives
  4. Anaerobic adhesives
Model No. ADoST-PV-X3-XX, ADoST-PV-X6-XX
Related Accessories
(Click image to explore more)
Consumables
(Click image to explore more)

Specifications

Model Number ADoST-PV-X3-XX ADoST-PV-X6-XX
Size (Metric) 36.5mm dia. x 136mm Length
Weight 170 gm
Operating Air Pressure 4 to 6 Bar
Material Aluminum
Maximum Operating Frequency 100 cycles /minute
Ambient temperature range 5°C to +45°C
Response time 0.02s
Usage Indoor use
Adhesive Low Viscous Low/Medium Viscous

Benefits

  • Light weight and Compact Design
  • High precision and Accuracy
  • Adjustable stroke Length
  • Easy Tube change
  • Anodized 6063 Aircraft grade aluminum

Applications

Fast-Curing Cyanoacrylate Adhesive Dispensing with ADoST PPS NXT using ADoST Pinch Valve

Dispensing fast-curing cyanoacrylate adhesives can be challenging due to rapid curing, which often causes clogging of wet parts and increases maintenance requirements. The ADoST PPS NXT, equipped with an integrated pinch valve, prevents direct contact between the adhesive and valve components, helping to minimize clogging during operation.

The system also uses specially selected low-permeability tubing to maximize tube life and maintain consistent dispensing performance.
