Structural and toughened methacrylate adhesive for metals, plastics and
composites bonding for most assembly operations.

Download TDS

Application

Application Tips

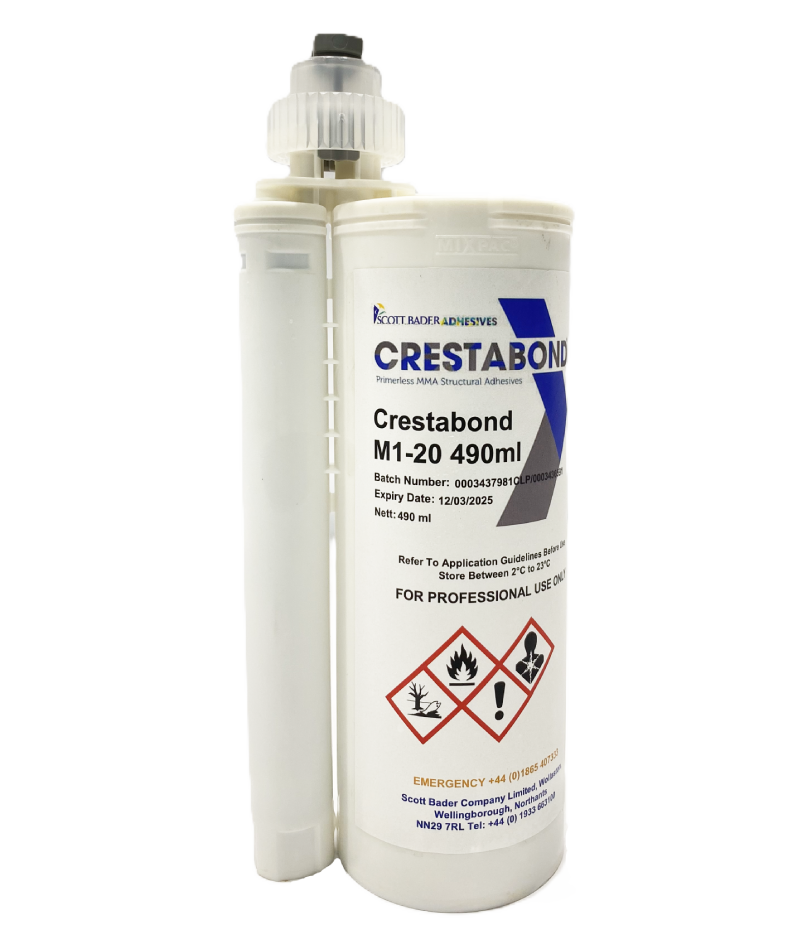

crestabond-m1-20-black-methacrylate-adhesive
Applications
  1. Bonding of GRP to GRP & GRP to Powder Coated Metal components in driver cabins of construction vehicles
  2. Bonding of Aluminium with plastic corners and internal supports in refrigerated delivery truck
  3. Bonding of ABS thermoformed components in pick up trucks
  4. Bonding of SMC Sunroofs in trucks
  5. Bonding of Shield frame with Battery Tray in electric vehicles
  6. Bonding of RIM PU casing bonded in Stadium & Live performance speakers
  7. Bonding non-conductive liner to EP pre-preg tray in Electric Vehicle
Replaces boltrivetssolderingbrazing
Available pack size 50ml, 400ml, bulk
Standards ASTM, ISO, REACH, RoHS
Related Accessories
(Click image to explore more)

Specifications

Chemical Composition Methyl Methacrylate
Curing Mechanism Polymerization on mixing of Part A & Part B .
Mixing ratio by volume 10:1
Color Grey and Black
Pot Life 16-22 minutes
Fixture time 25-35 minutes
Shear Strength 16-20 N/mm²
Service Temperature -40°C to +100°C

Features and Benefits

Primer less application. No pre-treatment required too.
Replaces mechanical fastening and plastic welding.
High strength, modulus and toughness.
Non-Sag.

Notes

  • Excellent for bonding dissimilar substrates.
  • Not suitable for Zinc/Galvanised Coated metals. Refer to Crestabond M7 range for these substrates.
  • The product needs to be refrigerated during storage between 2°C to 23°C
  • Exposure above 35°C must be avoided.

Applications

Adhesive Solution for Nameplate Bonding on Electric Motor Fins

The current method of riveting, while functional, poses limitations in terms of sustainability and reliability. Additionally, alternatives like double sided tape have proven ineffective due to limited bonding area and debonding under heat

To address these concerns, we recommend Structural adhesives, like Crestabond M1-20, as a robust solution for nameplate bonding. Crestabond M1-20 offers:

  • Strong Adhesion: Designed for bonding to complex surfaces, including uneven or irregular areas like motor fins.

  • Heat Resistance: Capable of withstanding elevated temperatures, ensuring durability in heated conditions.

  • Non-Invasive Application: Eliminates the need for drilling or hammering, thereby preventing any potential damage to the motor fins.

  • Long-Term Sustainability: Provides a reliable, long-lasting bond, minimizing maintenance and rework costs.

Crestabond M1-20 as a robust solution for nameplate bonding
