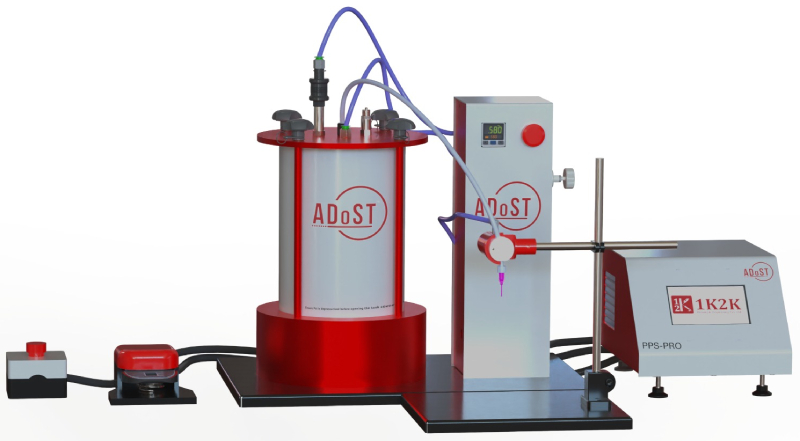

ADoST-PPS-PRO
Applications

ADoST PPS-PRO is designed to be used to dispense low to medium viscous products such as:

  1. Cyanoacrylate adhesives
  2. Anaerobic adhesives
  3. Ultraviolet (UV) curing adhesives
Related Accessories
(Click image to explore more)		           sensor
Consumables
(Click image to explore more)

Specifications

Model no. ADoST-PPS-PRO-CY-23-2P ADoST-PPS-PRO-AN-46-6P ADoST-PPS-PRO-UV-46-6P
Power Supply Min:100 VAC, Nominal:230 VAC, Max 275VAC
Size (Metric) MCU (300X196X138mm), SCU (500X453X350mm)
Weight 18 Kg
Ambient temperature range 10°C to +45°C
Response time 0.02s
Usage Indoor Use
Operating Air Pressure 2 Bar (Max.) 6 Bar (Max.)
Minimum Dispense amount 0.007gm (low viscous) 0.018gm (medium viscous)
Accuracy +/-0.005gm
Pinch Tube ID 2mm 4mm
Recommended for Cyanoacrylate Adhesive Anaerobic Adhesive UV Adhesive

Benefits

  • Offers both timer and manual mode.
  • Provides repeatable dose within
    +/- 0.005gm (tested with low viscous materials).
  • Minimum dispensing shot size 0.007gm.
  • Programmable up to 50 in numbers.
  • Low level indicator.
  • Slide valve for quick charging and exhaust.
  • Sensor for part detection (optional).
  • Settings are password protected.
  • 4.3” user-friendly digital display.

Variants

Model No. Description Compatible Pinch Valve Compatible Pen
ADoST-PPS-PRO-CY-23-2P ADoST PPS-PRO designed to be used for Cyanoacrylate adhesive dispensing ADoST-PV-X3-XX ADoST-MP-3-0
ADoST-PPS-PRO-AN-46-6P ADoST PPS-PRO designed to be used for Anaerobic adhesive dispensing ADoST-PV-X6-XX ADoST-MP-6-0
ADoST-PPS-PRO-UV-46-6P ADoST PPS-PRO designed to be used for UV adhesive dispensing ADoST-PV-X6-XX ADoST-MP-6-0
