Medical grade for glass, metal and plastic bonder

Download TDS

Applications

Application Tips

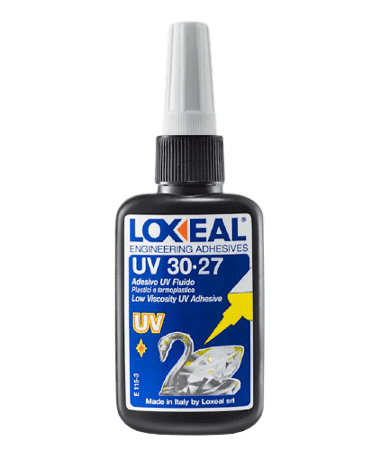

Loxeal-30-27
Applications
  1. Loxeal 30-27 is recommended for the assembly of medical syringe needles, it is also used for bonding some thermoplastics to glass and metal.
Replaces Solvent Bonding, Ultrasonic Welding
Available pack size 50ml, 250ml, 2litre
Standards DIN, ISO, ASTM, REACH, RoHS
Related Accessories
(Click image to explore more)

Specifications

Chemical Composition Acrylic base
Curing Mechanism Polymerization on exposure to UV rays
Recommended substrates Glass/Glass ,Glass/Metal , Transparent Plastics (PC,ABS,PMMA) .
Recommended UV Waves 365 to 420 nm
Recommended Intensity 100mW/cm²
Curing time Depends on Substrates .
Tensile Strength 15 – 20 N/mm²
Service Temperature -55°C to 120°C

Features and Benefits

The product is approved for ISO10993,Cytotxicity,Haemolysis,Intrcutaneous Injection Test,Kligman Maximization test and Systemic Injection test.
Typical application including bonding of SS Needles to plastic hub in medical devices.
Loxeal 30-27 shows excellent performance under ETO & Gamma sterilization process.

Notes

  • Loxeal 30-27 is a series of products available under different viscosities to meet specific customer needs.UV 30-27 (standard), UV 30-27P (Medium), UV30-27HV (High viscosity).Ask for the version that suits you best.
  • For best results UV rays must have wavelength in range of 365-420 nm and light intensity of 100mW/cm².
  • Curing time depends on adhesive film thickness hence must be factored in.

Applications

Needle Bonding Application using Loxeal 30-27HV, a medical grade UV curing adhesive

The video demonstrates application Loxeal UV30-27HV, a medical grade(ISO 10993, L929 MEM) UV curing adhesive for bonding stainless steel needle with plastic hub. The recommended wavelength of UV curing device is 365-420 Nm.
