Low strength, fluid, high temperature Threadsealant

Download TDS

Application Tips

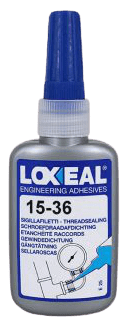

Loxeal-15-36
Applications
  1.  As a threadsealant in equipment and machineries to prevent leakage against pressure.
  2. Sealing of pipe fittings and piping in pressure vessels, compressors, pumps, valves, chillers, gear box, automobile and general plumbing applications.
Replaces Dowty-SealO-RingHemp
Available pack size 50ml, 250ml
Standards DIN 30661-Reg No.8701e632, DIN-DVGW, ISO, RoHS, REACH
Related Accessories
(Click image to explore more)

Specifications

Chemical Composition Anaerobic Methacrylate
Curing Mechanism In absence of air and presence of metal ions
Color Blue
Recommended Substrates All metals (Ferrous and Non-Ferrous)
Max Gap Fill 0.30 mm
Handling Cure Time 15-30 minutes
Functional Cure Time 1-3 hours
Shear Strength 4-6 N/mm2
Breakaway Torque 8-14 Nm
Prevailing Torque 4-8 Nm
Service Temperature -55° C to 180° C

Features and Benefits

Low strength for easy dismantling of joints for maintenance and service.
Gas approved (DIN-DVGW)
Blue colour makes application easy to identify.
Forms elastic film
Fluorescence effect for quality check

Notes

  • Excellent for pipe fittings up to 2” for easy maintenance and dismantling.
  • Approved for use with gas connections in accordance with DIN 30661 Reg No.8701e632.
  • Can withstand temperature upto 180°C
