Suitable for A-System 50ml Mixpac Cartridges

MIXPAC-MAH-series_new
MIXPAC-MAH-series_new
Cartridge Size 50ml
Mix Ratio 1:1/2:1
Type of elements Helical
Connection style Bayonet Style
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MAH 05-17T 1:1/2:1 17 5.4 1.68 4000 PolyPropylene
MAH05-21T 1:1/2:1 21 5.4 2.01 3000 PolyPropylene
MAH 06-12T 1:1/2:1 12 6.3 2.08 4500 PolyPropylene
MAH06-21T 1:1/2:1 21 6.3 3.57 2500 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MAH 05-17T 17 5.4 1.68
MAH05-21T 21 5.4 2.01
MAH 06-12T 12 6.3 2.08
MAH06-21T 21 6.3 3.57

Frequently asked questions

MAH stands for “Mixer A type Helical” which means that the said Mixer has “A” type inlet connection and Helical mixing elements.

Waste Volume is the amount of adhesive trapped inside the Mixpac MAH series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MAH series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

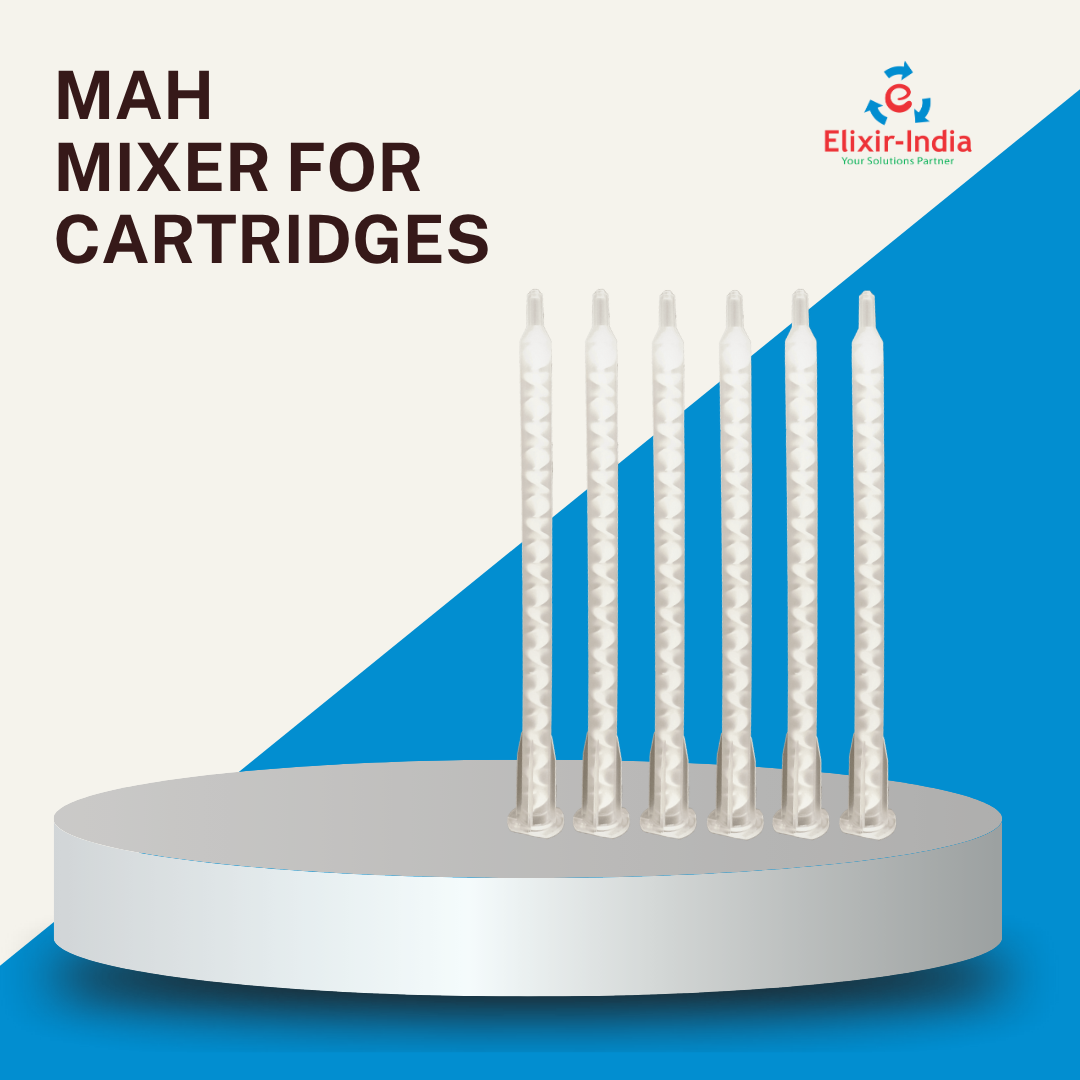

MAH series static mixer
