Suitable for A-System 50ml Mixpac Cartridges

Mixpac-MAHX-static-mixer
Mixpac-MAHX-static-mixer
Cartridge Size 50ml
Mix Ratio 4:1/10:1
Type of elements Helical
Connection style Bayonet Style
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MAHX04-17S 4:1/10:1 17 4 0.75 7500 PolyPropylene
MAHX 05-17T 4:1/10:1 17 5.4 1.68 4000 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MAHX04-17S 17 4 0.75
MAHX 05-17T 17 5.4 1.68

Frequently asked questions

An “X” is added to standard “MAH” to signify that it (MAHX) is used for 4:1 or 10:1. The element of these mixers is Pink in color for easy identification from 1:1 and 2:1 mixers (MAH type)

Article number is a unique identification number of a mixer in short form. As an example MAHX 04-17S stands for A type Static Mixer with Helical Elements for 4:1 and 10:1 mixing ratio cartridge/adhesive and having 4mm ID, 17 mixing elements and stepped tip.

Waste Volume is the amount of adhesive trapped inside the Mixpac MAHX series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MAHX series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MAHX series static mixers.

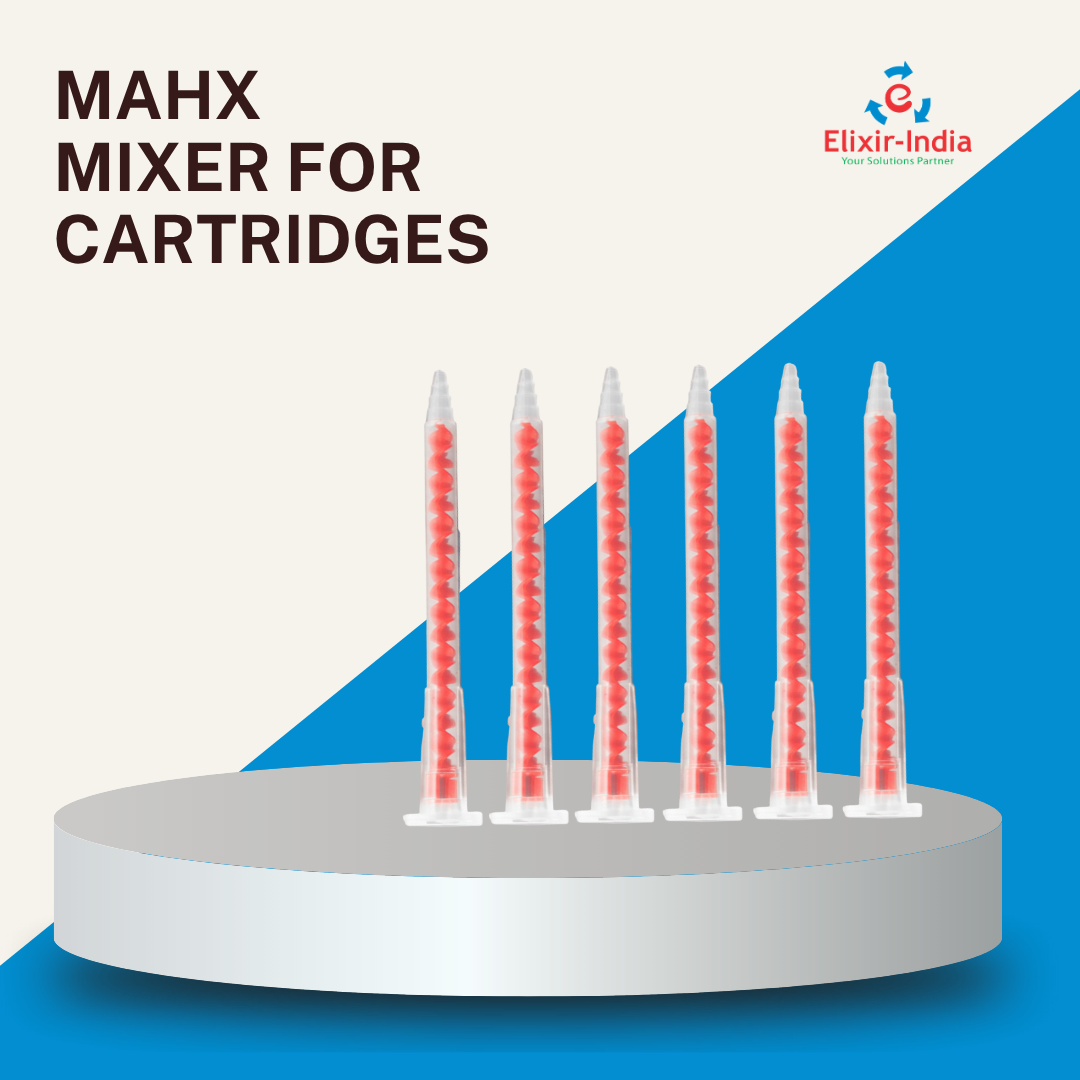

MAHX series static mixer
