Suitable for A-System 50ml Mixpac Cartridges

Mixpac-MAQ-Series-static-mixer
Mixpac-MAQ-Series-static-mixer
Cartridge Size 50ml
Mix Ratio 1:1/2:1/4:1/10:1
Type of elements Quadro
Connection style Bayonet Style
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MAQ 05-16L 1:1/2:1/4:1/10:1 16 5.3 1.3 5000 PolyPropylene
MAQ 05-24L 1:1/2:1/4:1/10:1 24 5.3 1.9 3000 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MAQ 05-16L 16 5.3 1.3
MAQ 05-24L 24 5.3 1.9

Frequently asked questions

MAQ stand for “A type Mixer having Quadro elements”. A type Mixers can only be used on A type Cartridge.

MAQ mixers are used for 1:1 and 2:1 mixing ratio cartridge/adhesive and are color coded Green to denote that.

Article number is a unique identification number of a mixer in short form. As an example MAQ 05-16L stands for A type Static Mixer with Quadro Elements for 1:1 and 2:1 mixing ratio cartridge/adhesive and having 5mm ID, 16mixing elements and luer tip meaning that a Luer Lock can be fixed over it.

Waste Volume is the amount of adhesive trapped inside the Mixpac MAQ series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MAQ series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MAQ series static mixers.

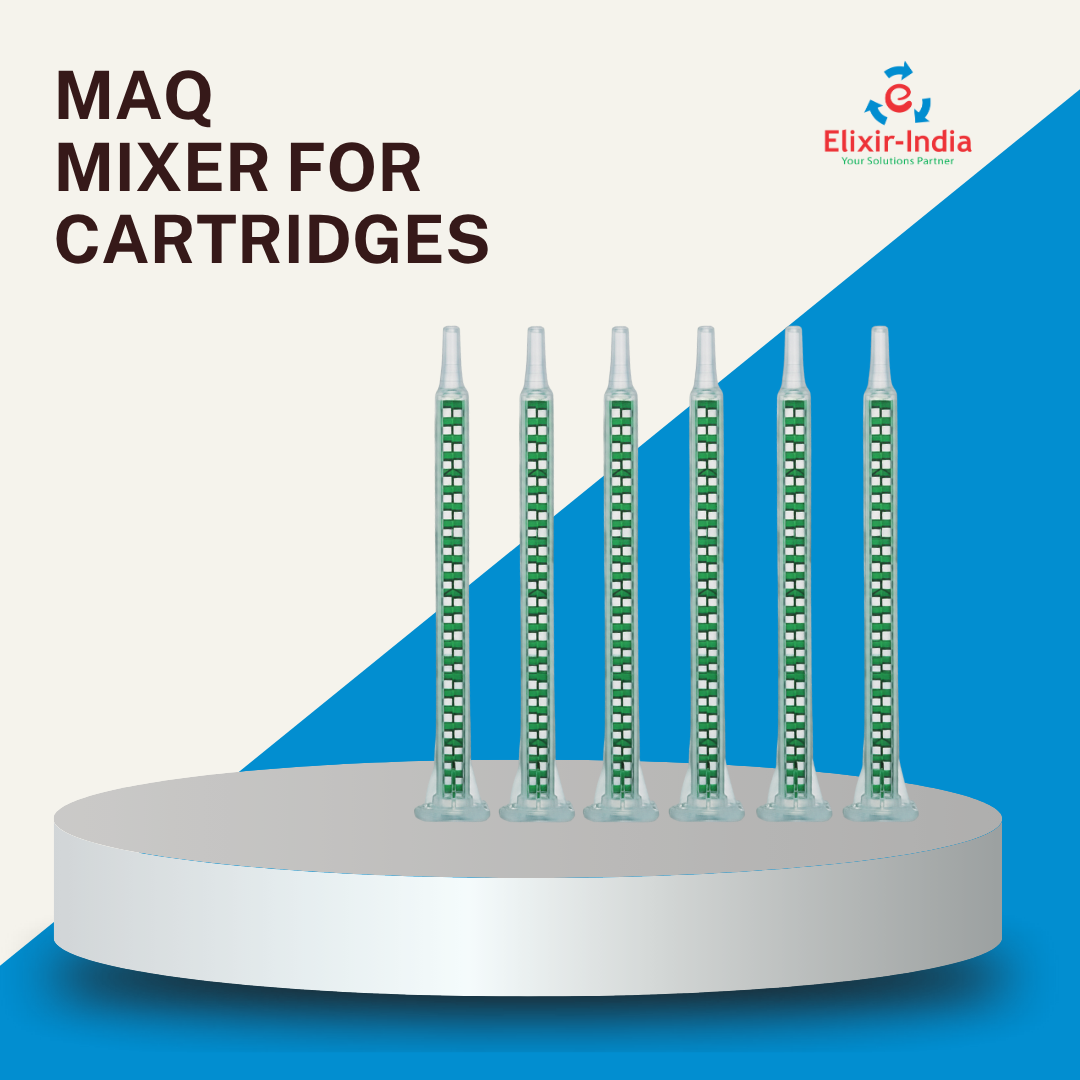

MAQ series static mixer
