Suitable for Mixpac B-System 25/50ml Cartridges

MIXPAC-MBHX-Static-Mixer
MIXPAC-MBHX-Static-Mixer
Cartridge Size 25/50ml
Mix Ratio 4:1/10:1
Type of elements Helical
Connection style B Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MBHX 03-16S 4:1/10:1 16 3.2 0.6 7000 PolyPropylene
MBHX 05-16T 4:1/10:1 16 5.4 1.91 4000 PolyPropylene
MBHX 06-20T 4:1/10:1 20 6.5 3.79 2000 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MBHX 03-16S 16 3.2 0.6
MBHX 05-16T 16 5.4 1.91
MBHX 06-20T 20 6.5 3.79

Frequently asked questions

MBHX stand for “B type Mixer having Helical elements” and “X” denote that it can be used for only 4:1 and 10:1 ratio cartridge. B type Mixers can only be used on B type Cartridge.

MBHX mixers are used for 4:1 and 10:1 mixing ratio cartridge/adhesive and are color coded Pink to denote that.

Article number is a unique identification number of a mixer in short form. As an example MBHX 03-16S stands for B type Static Mixer with Helical Elements for 4:1 and 10:1 mixing ratio cartridge/adhesive and having 3mm ID, 16mixing elements and stepped tip that can be cut to expose larger inner dia for large bead or high flow rate.

Waste Volume is the amount of adhesive trapped inside the Mixpac MAHX series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MAHX series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MAHX series static mixers.

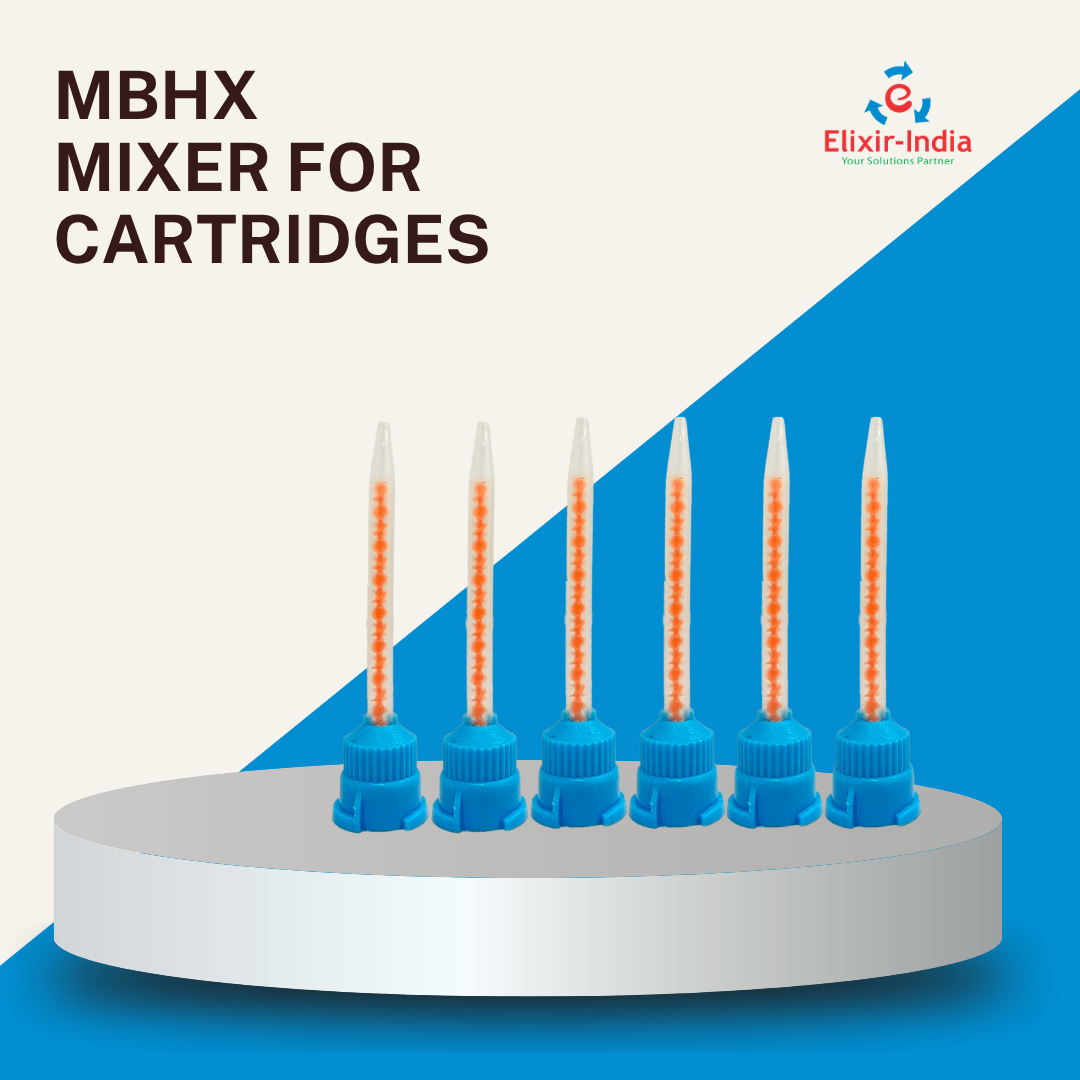

MBHX series static mixer
