Suitable for Mixpac B-System 25/50ml Cartridges

MIXPAC™-MBQ-Static-mixer
MIXPAC™-MBQ-Static-mixer
Cartridge Size 25/50ml
Mix Ratio 1:1/2:1
Type of elements Quadro
Connection style B Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MBQ 05-16L 1:1/2:1 16 5.3 1.88 3000 PolyPropylene
MBQ 05-24L 1:1/2:1 24 5.3 1.88 3000 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MBQ 05-16L 16 5.3 1.88
MBQ 05-24L 24 5.3 1.88

Frequently asked questions

MBQ stand for “B type Mixer having Quadro elements” it can be used for only 1:1 and 2:1 ratio cartridge. B type Mixers can only be used on B type Cartridge.

MBQ mixers are used for 1:1 and 2:1 mixing ratio cartridge/adhesive and are color coded green to denote that.

Article number is a unique identification number of a mixer in short form. As an example MBQ 05-16L stands for B type Static Mixer with Quadro Elements for 1:1 and 2:1 mixing ratio cartridge/adhesive and having 5mm ID, 16mixing elements and luer tip.

Waste Volume is the amount of adhesive trapped inside the Mixpac MBQ Series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MBQ Series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MBQ Series static mixers.

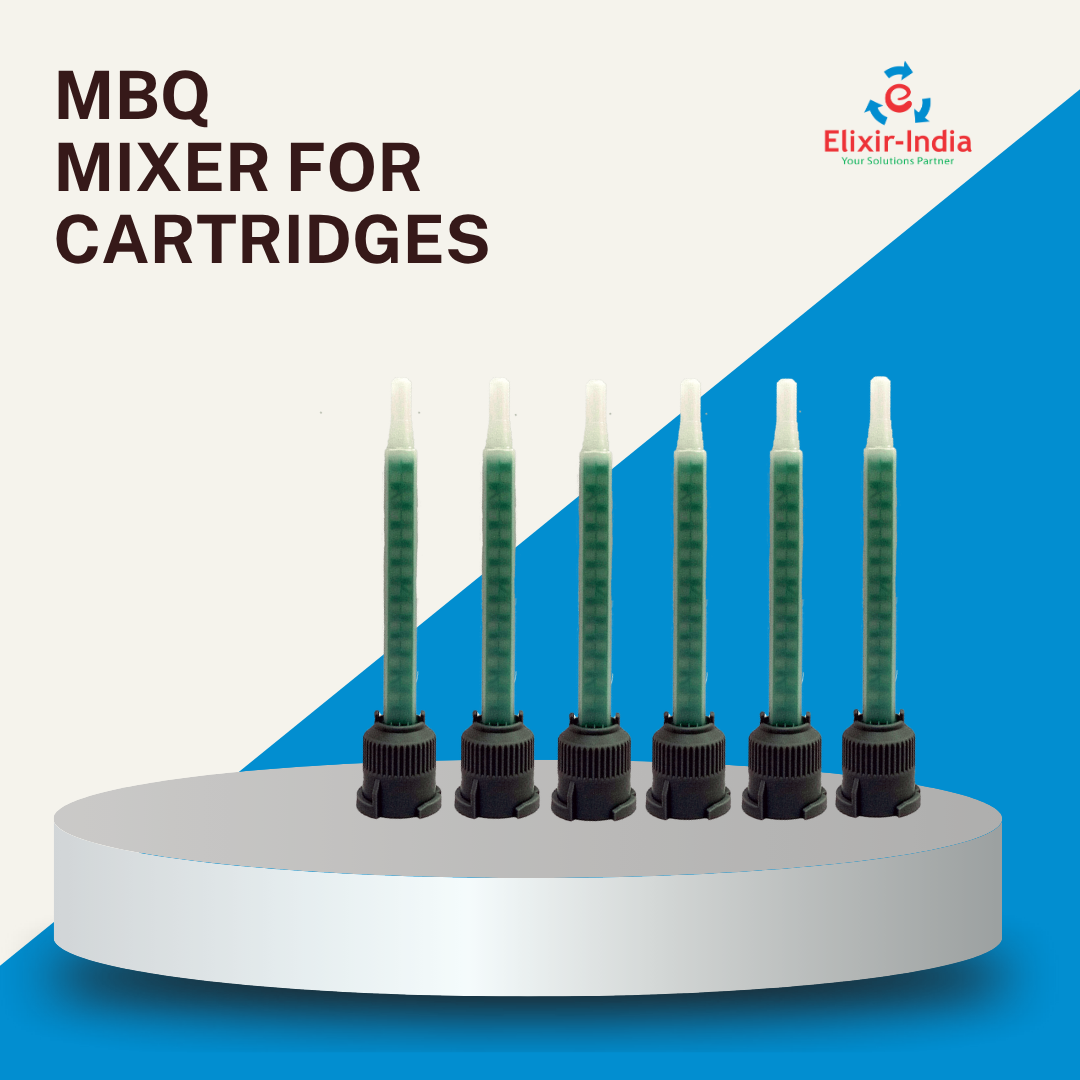

MBQ series static mixer
