Suitable for Mixpac B-System 25/50ml Cartridges

MIXPAC-MBQX-Mixer
MIXPAC-MBQX-Mixer
Cartridge Size 25/50ml
Mix Ratio 4:1/10:1
Type of elements Quadro
Connection style B Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MBXQ 05-16L 4:1/10:1 16 5.3 1.72 3000 PolyPropylene
MBQX 05-24L 4:1/10:1 24 5.3 2.37 3000 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MBXQ 05-16L 16 5.3 1.72
MBQX 05-24L 24 5.3 2.37

Frequently asked questions

MBQX stand for “B type Mixer having Quadro elements” and “X” denote that it can be used for only 4:1 and 10:1 ratio cartridge. B type Mixers can only be used on B type Cartridge.

MBQX mixers are used for 4:1 and 10:1 mixing ratio cartridge/adhesive and are color coded Pink to denote that.

Article number is a unique identification number of a mixer in short form. As an example MBQX 05-16L stands for B type Static Mixer with Quadro Elements for 4:1 and 10:1 mixing ratio cartridge/adhesive and having 5mm ID, 16mixing elements and Luer tip to easily fit a nozzle with Luer lock.

Waste Volume is the amount of adhesive trapped inside the Mixpac MBQX series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MBQX series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MBQX series static mixers.

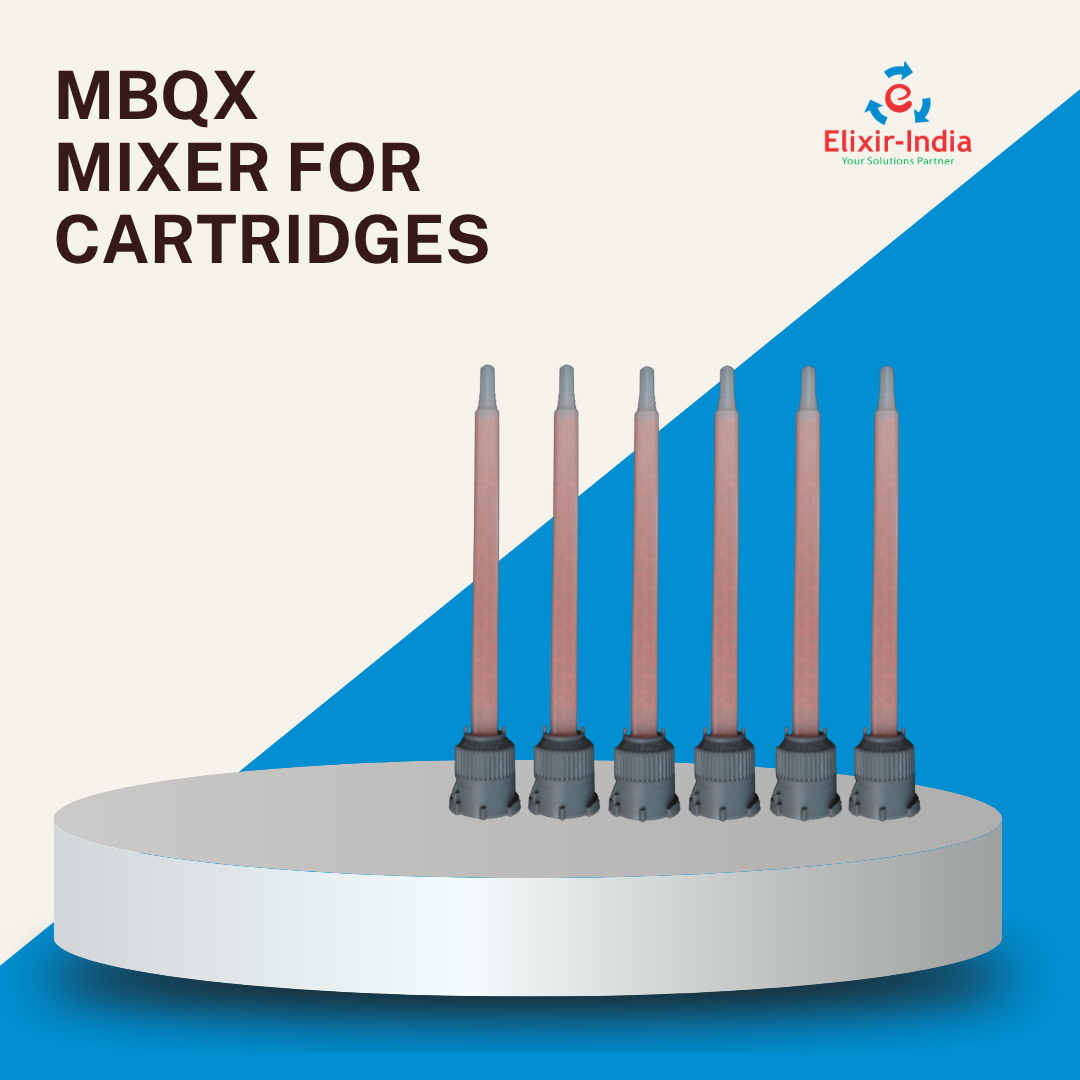

MBQX series static mixer
