Suitable for Mixpac C-System 200/400ml Cartridges

MIXPAC-MCHX-static-mixer
MIXPAC-MCHX-static-mixer
Cartridge Size 200/400ml
Mix Ratio 4:1/10:1
Type of elements Helical
Connection style C Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MCHX 08-18T 4:1/10:1 18 8.0 6.40 1800 PolyPropylene
MCHX 08-24T 4:1/10:1 24 8.0 9.30 1500 PolyPropylene
MCHX 10-24T 4:1/10:1 24 10.0 16.20 1000 PolyPropylene
MCHX 13-12T 4:1/10:1 12 13.0 11.60 1200 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MCHX 08-18T 18 8.0 6.40
MCHX 08-24T 24 8.0 9.30
MCHX 10-24T 24 10.0 16.20
MCHX 13-12T 12 13.0 11.60

Frequently asked questions

MCHX stand for “C type Mixer having Helical elements” and “X” denote that it can be used for only 4:1 and 10:1 ratio cartridge. C type Mixers can only be used on C type Mixpac Cartridge that are available in 200ml or 400ml.

MCHX mixers are used for 4:1 and 10:1 mixing ratio cartridge/adhesive and are color coded Pink to denote that.

Article number is a unique identification number of a mixer in short form. As an example MCHX 10-24T stands for C type Static Mixer with Helical Elements for 4:1 and 10:1 mixing ratio cartridge/adhesive and having 10mm ID, 24mixing elements and tape tip that can be cut to expose larger inner dia for large bead or high flow rate.

Waste Volume is the amount of adhesive trapped inside the Mixpac MCHX series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MCHX series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MCHX series static mixers.

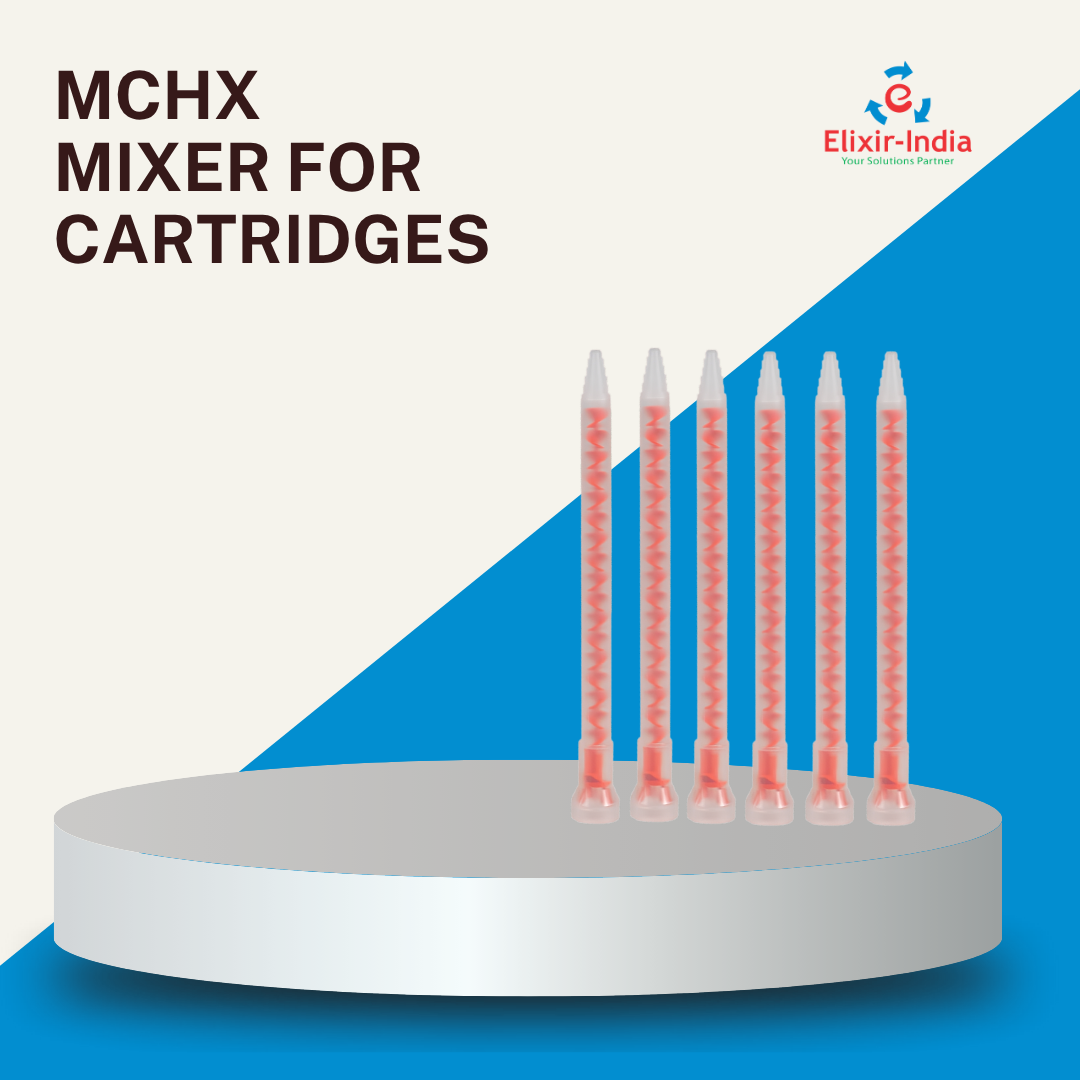

MCHX series static mixer
