Suitable for Mixpac C-System 200/400ml Cartridges

Mixpac-MCQ-Series-static-mixer
Mixpac-MCQ-Series-static-mixer
Cartridge Size 200/400ml
Mix Ratio 1:1/2:1
Type of elements Quadro
Connection style C Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MCQ 05-24L 1:1/2:1 24 5.3 3.46 1500 PolyPropylene
MCQ 08-24T 1:1/2:1 24 8.7 8.44 1300 PolyPropylene
MCQ 08-32T 1:1/2:1 32 8.7 10.37 900 PolyPropylene



Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MCQ 05-24L 24 5.3 3.46
MCQ 08-24T 24 8.7 8.44
MCQ 08-32T 32 8.7 10.37

Frequently asked questions

MCQ stand for “C type Mixer without Threads with Quadro elements”. C type Mixers can only be used on C type Mixpac Cartridge that come in 200ml or 400ml size and is fastened directly on the threads without use of plastic nut.

MCQ mixers are used for 1:1, 2:1 mixing ratio in side by side cartridge and 4:1 and 10:1 mixing ratio cartridge/adhesive in co-axial design.

Article number is a unique identification number of a mixer in short form. As an example MCQ 08-24T stands for C type Static Mixer without Threads and having Quadro Elements for 1:1, 2:1, 4:1 and 10:1 mixing ratio cartridge/adhesive and having 8mm ID, 24mixing elements and taper tip that can be cut to expose larger inner dia for large bead or high flow rate.

Waste Volume is the amount of adhesive trapped inside the Mixpac MCQ Series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MCQ Series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MCQ Series static mixers.

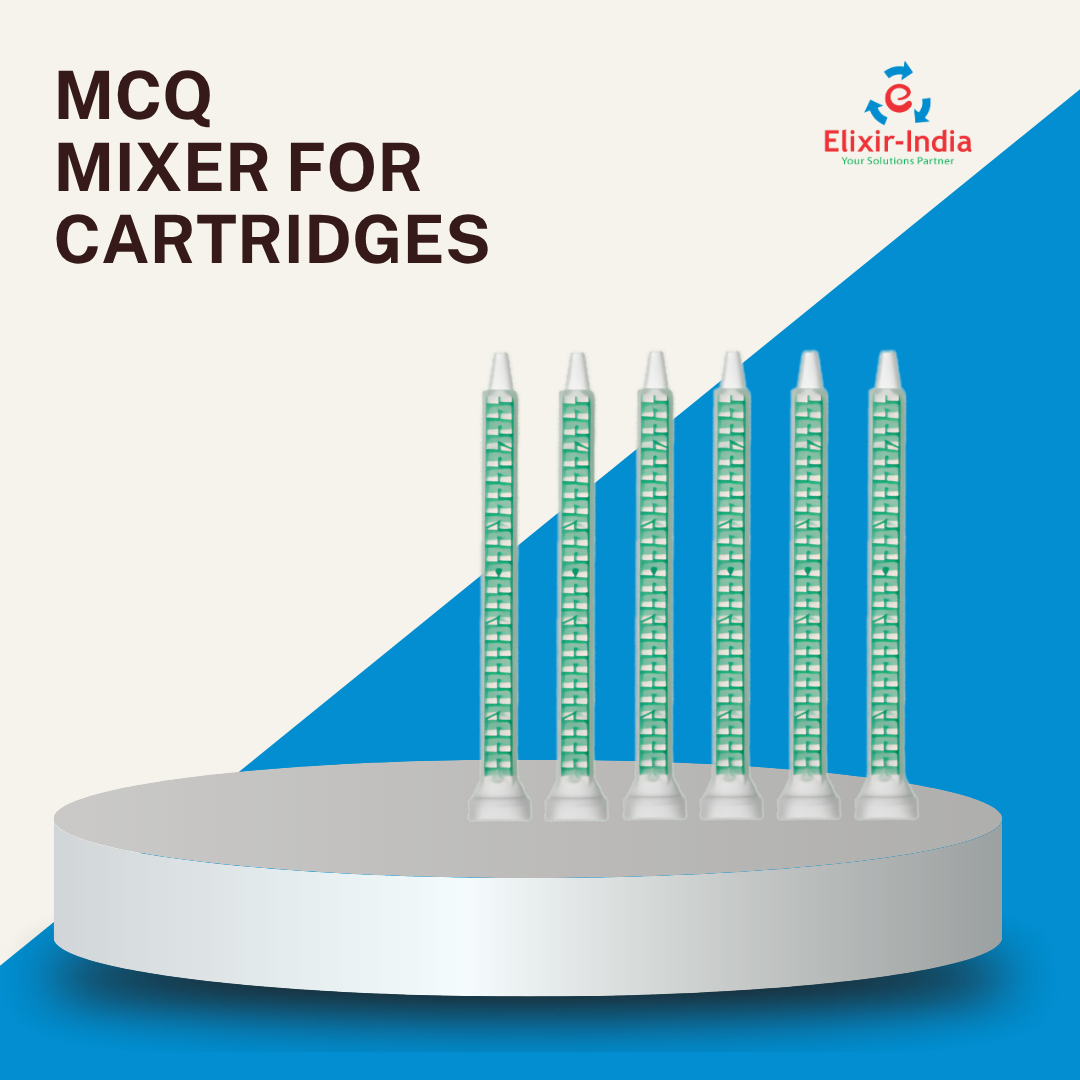

MCQ series static mixer
