Suitable for Mixpac C-System 200/400ml Cartridges

MIXPAC-MGQ-Series
MIXPAC-MGQ-Series
Cartridge Size 200/400ml
Mix Ratio 1:1/2:1/4:1/10:1
Type of elements Quadro
Connection style C Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MGQ 08-18T 1:1/2:1/4:1/10:1 18 8.7 6.70 1200 PolyPropylene
MGQ 08-20D 1:1/2:1/4:1/10:1 20 8.7 7.57 1000 PolyPropylene
MGQ 08-24T 1:1/2:1/4:1/10:1 24 8.7 8.76 800 PolyPropylene
MGQ 10-19D 1:1/2:1/4:1/10:1 19 10.7 12.15 800 PolyPropylene
MGQ 10-24D 1:1/2:1/4:1/10:1 24 10.7 14.49 650 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MGQ 08-18T 18 8.7 6.70
MGQ 08-20D 20 8.7 7.57
MGQ 08-24T 24 8.7 8.76
MGQ 10-19D 19 10.7 12.15
MGQ 10-24D 24 10.7 14.49

Frequently asked questions

MGQ stand for “C type Mixer having Threads with Quadro elements”. G type Mixers can only be used on C type Mixpac Cartridge that come in 200ml or 400ml size and is fastened directly on the threads without use of plastic nut.

MGQ mixers are used for 1:1, 2:1 mixing ratio in side by side cartridge and 4:1 and 10:1 mixing ratio cartridge/adhesive in co-axial design.

Article number is a unique identification number of a mixer in short form. As an example MGQ 08-24T stands for C type Static Mixer with Threads and having Quadro Elements for 1:1 and 2:1 mixing ratio cartridge/adhesive and having 8mm ID, 24mixing elements and taper tip that can be cut to expose larger inner dia for large bead or high flow rate.

Waste Volume is the amount of adhesive trapped inside the Mixpac MGQ Series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MGQ Series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MGQ Series static mixers.

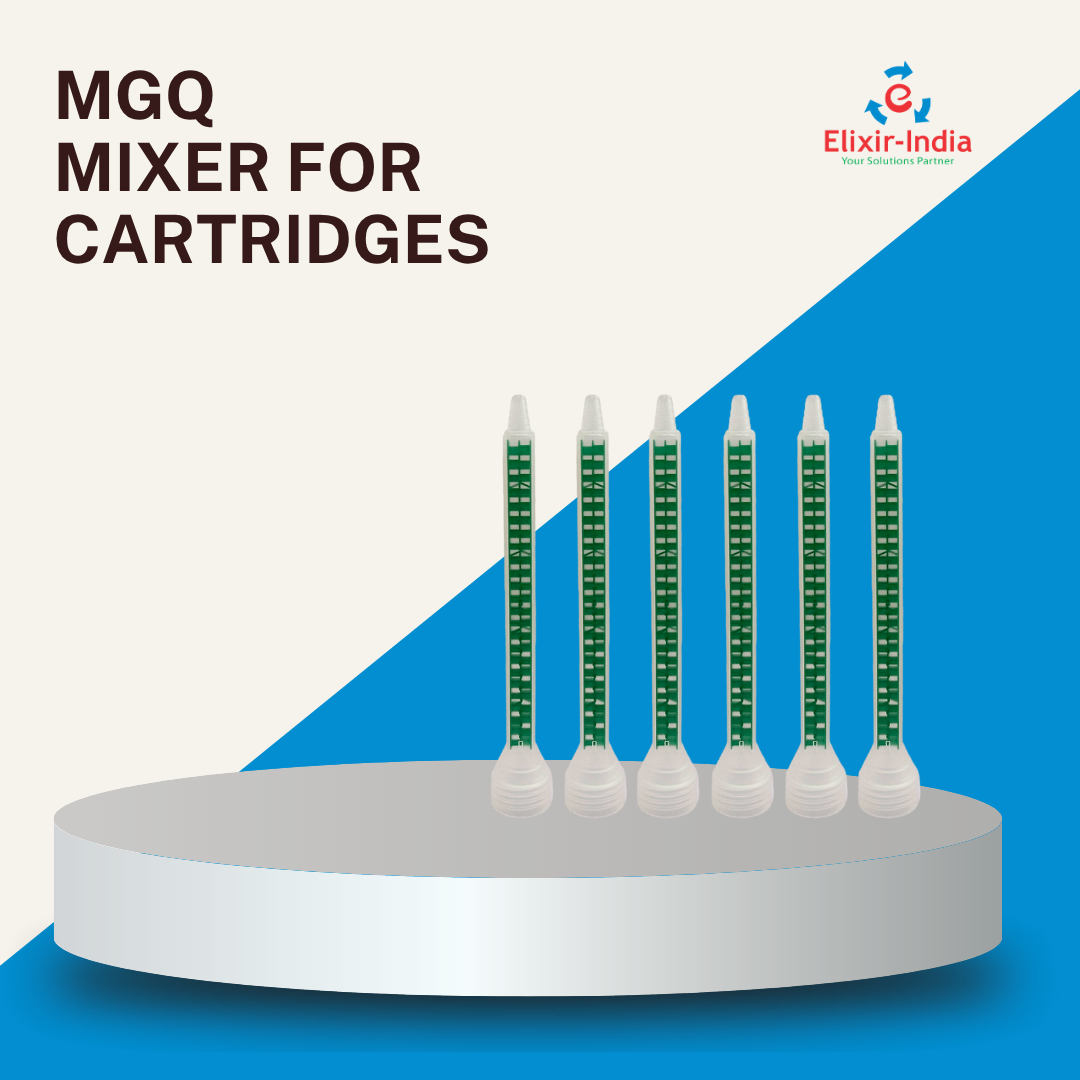

MGQ series static mixer
