Suitable for Mixpac F-System 200/400 Industrial Set

  • Mixpac-MFH-static-mixer
Cartridge Size 200/400ml
Mix Ratio 1:1/2:1
Type of elements Helical
Connection style F Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MFH 06-24T 1:1/2:1 24 6.0 5.40 1400 PolyPropylene
MFH 08-24T 1:1/2:1 24 8.0 9.30 1200 PolyPropylene
MFH 08-32T 1:1/2:1 32 8.0 11.85 900 PolyPropylene
MFH 10-24T 1:1/2:1 24 10.0 16.89 900 PolyPropylene
MFH 13-18T 1:1/2:1 18 13.0 20.56 800 PolyPropylene



Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MFH 06-24T 24 6.0 5.40
MFH 08-24T 24 8.0 9.30
MFH 08-32T 32 8.0 11.85
MFH 10-24T 1:1/2:1 24 10.0
MFH 13-18T 1:1/2:1 18 13.0

Frequently asked questions

MFH stand for “F type Mixer having Helical elements”. F type Mixers can only be used on F type Mixpac Cartridge that come in 200ml or 400ml size.

MFH mixers are used for 1:1 and 2:1 mixing ratio cartridge/adhesive and are color coded White to denote that.

Article number is a unique identification number of a mixer in short form. As an example MFH 06-32T stands for F type Static Mixer with Helical Elements for 1:1 and 2:1 mixing ratio cartridge/adhesive and having 6mm ID, 32mixing elements and taper tip that can be cut to expose larger inner dia for large bead or high flow rate.

Waste Volume is the amount of adhesive trapped inside the Mixpac MFH Series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MFH Series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MFH Series static mixers.

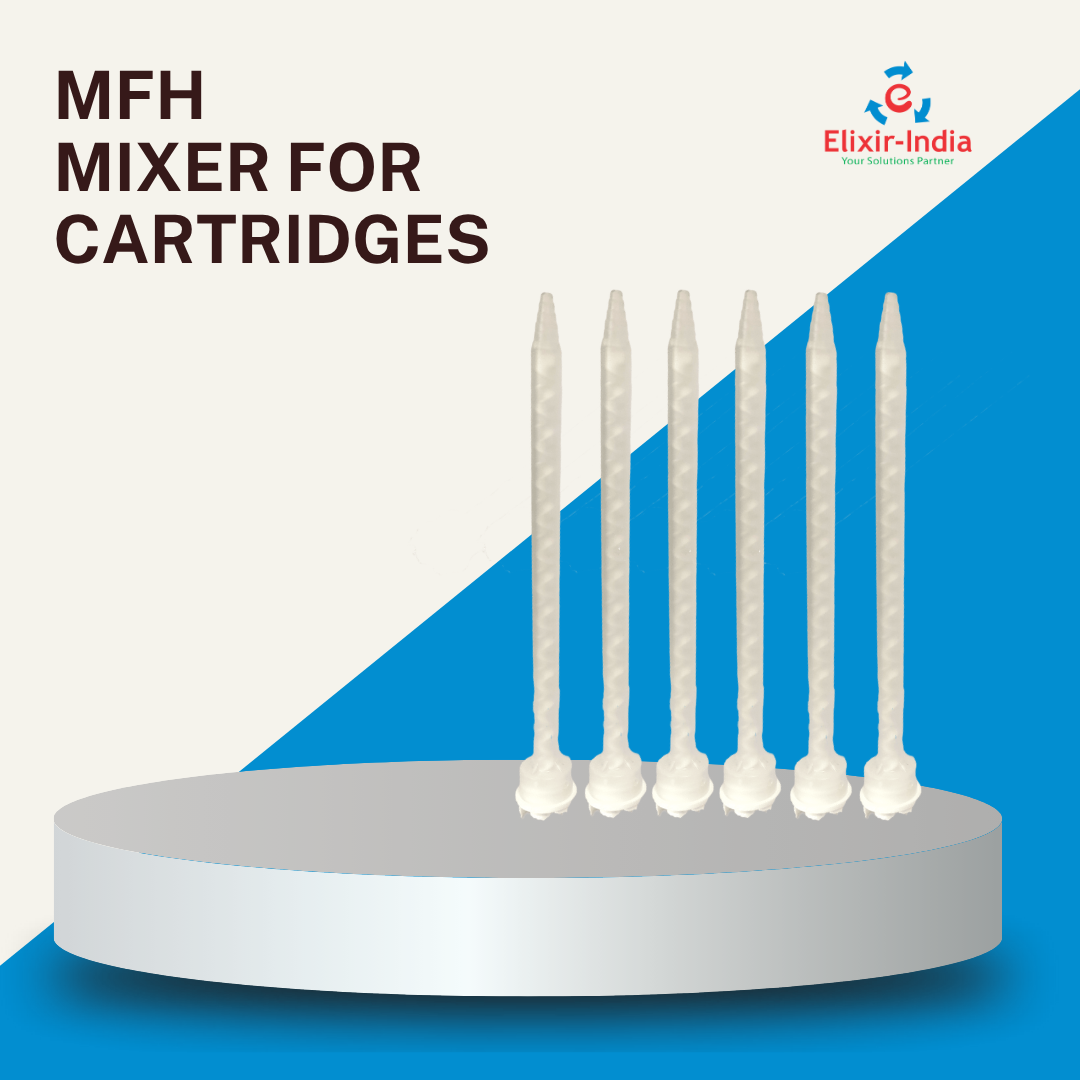

MFH series static mixer
