Suitable for Mixpac F-System 200/400 Industrial Set

MIXPAC™-MFQ-Static-mixer
MIXPAC™-MFQ-Static-mixer
Cartridge Size 200/400ml
Mix Ratio 1:1/2:1
Type of elements Quadro
Connection style C Type
Related Accessories
(Click image to explore more)		 Conical-NeedlesCynoacrylate-nozzle-plastic-needleLuer-Lock
Article Suitable For Ratio No. Of Elements Inner Dia (Mm) Waste Volume (Ml) Units Per Box Material Of Construction
MFQ 05-16L 1:1/2:1 16 5.3 2.90 2500 PolyPropylene
MFQ 05-24L 1:1/2:1 24 5.3 3.52 2000 PolyPropylene
MFQ 08-24T 1:1/2:1 24 8.7 8.69 750 PolyPropylene
MFQ 10-24T 1:1/2:1 24 10.7 14.75 600 PolyPropylene
Article No. Of Elements Inner Dia (Mm) Waste Volume (Ml)
MFQ 05-16L 16 5.3 2.90
MFQ 05-24L 24 5.3 3.52
MFQ 08-24T 24 8.7 8.69
MFQ 10-24T 24 10.7 14.75

Frequently asked questions

MFQ stand for “F type Mixer having Quadro elements” it can be used for only 1:1 and 2:1 ratio cartridge. F type Mixers can only be used on F type Cartridge.

MFQ mixers are used for 1:1 and 2:1 mixing ratio cartridge/adhesive and are color coded green to denote that.

Article number is a unique identification number of a mixer in short form. As an example MFQ 08-24t stands for F type Static Mixer with Quadro Elements for 1:1 and 2:1 mixing ratio cartridge/adhesive and having 8mm square, 24mixing elements and luer tip.

Waste Volume is the amount of adhesive trapped inside the Mixpac MFQ Series Static Mixer that will eventually be wasted since the adhesive will cure inside upon reaching its open curing time.

The outlet of Mixpac MFQ Series Static Mixers typically have about 3mm ID but in applications where adhesive’s bead requirement is less than that a nozzle can be fitted on the Static Mixer using the Luer Lock.

Unit per box means that one box contains that many MFQ Series static mixers.

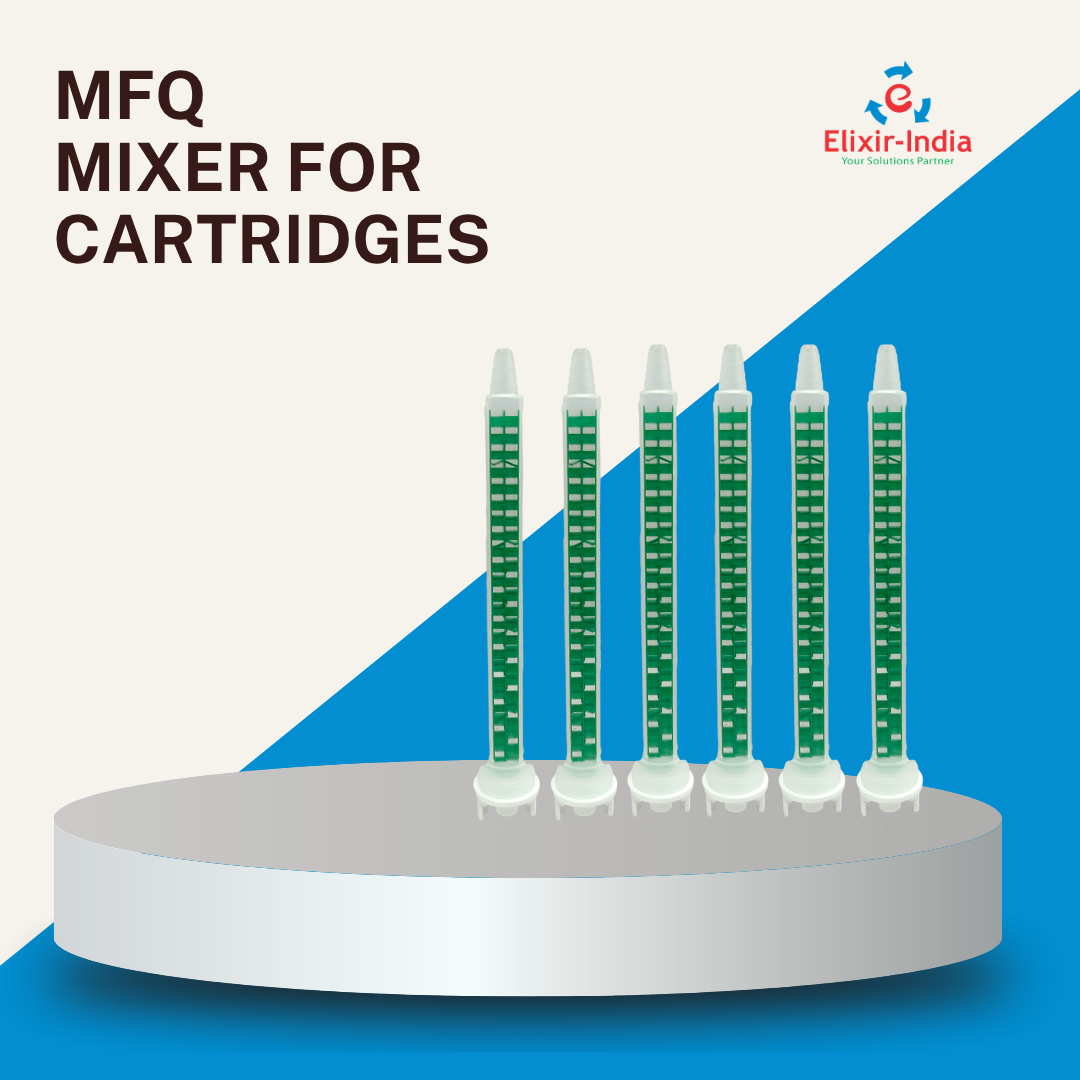

MFQ series static mixer
